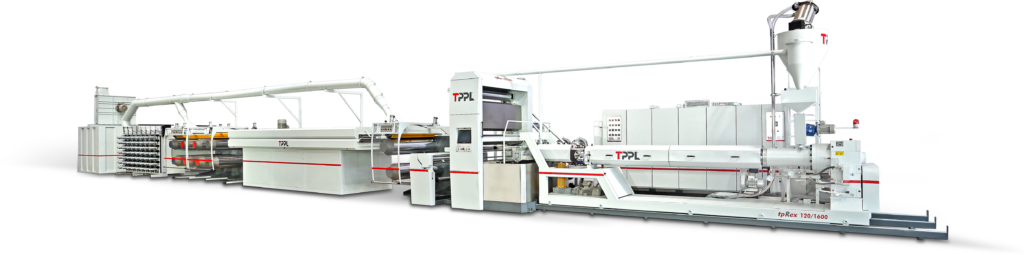

Tapeline – TP Rex 135-1800 HS

Introduction

The TP Rex 135-1800 HS is a high-speed tape extrusion line designed for manufacturing high-strength PP/HDPE tapes used in woven sacks, FIBC bags, and technical textiles. It ensures consistent quality, high productivity, and energy-efficient operations.

Benefits

  • High-speed production with consistent output
  • Excellent tape strength and uniformity
  • Advanced automation for easy operation

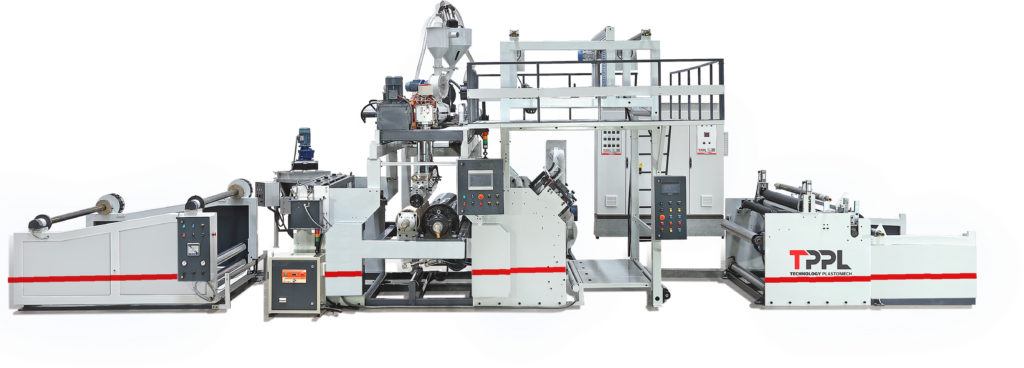

Lamination – LamiRex 2400 FB

Introduction

The LamiRex 2400 FB is an advanced extrusion coating and lamination line designed for high-quality coating of woven fabrics and flexible materials. It ensures superior bonding strength and smooth surface finish for packaging applications.

Benefits

  • High bonding strength and durability
  • Smooth and uniform coating finish
  • Suitable for multiple substrates
  • High-speed lamination capability

Fabric Cutting – JCM 2500-1500

Introduction

The JCM 2500-1500 is a precision fabric cutting machine designed for accurate and efficient cutting of woven fabric rolls. It ensures high productivity with minimal material wastage.

Benefits

  • High precision cutting
  • Smooth and clean edges
  • Reduced material wastage
  • High productivity output

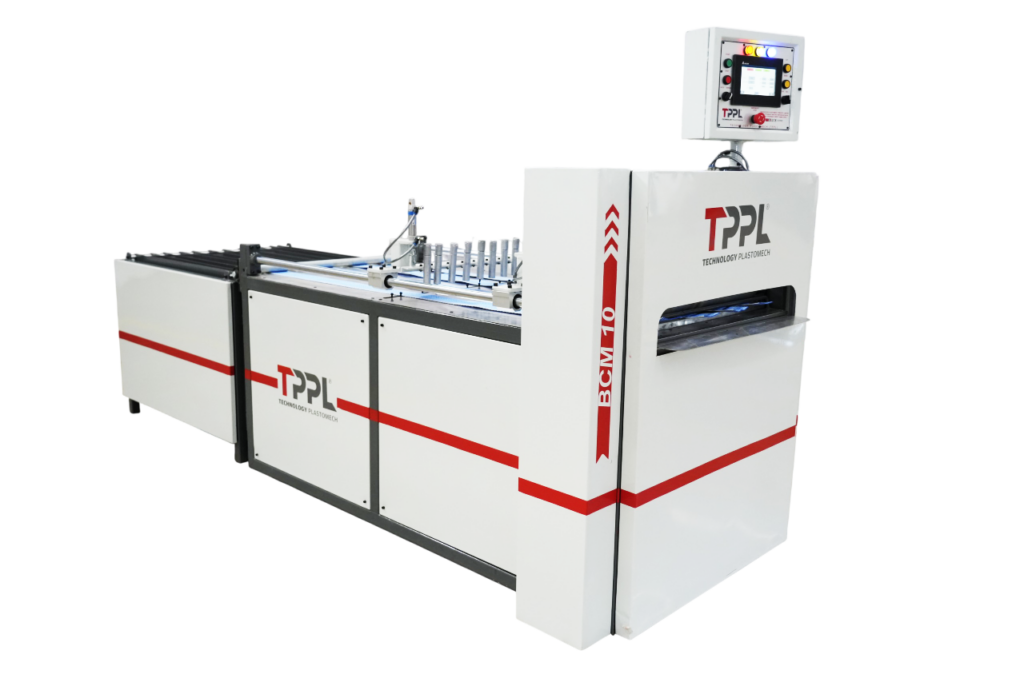

Belt Cutting – BCM 10

Introduction

The BCM 10 is a reliable belt cutting machine designed for precise cutting of belts used in FIBC and industrial applications. It ensures uniform length and high efficiency.

Benefits

  • Accurate and consistent cutting
  • High-speed operation
  • Improved production efficiency

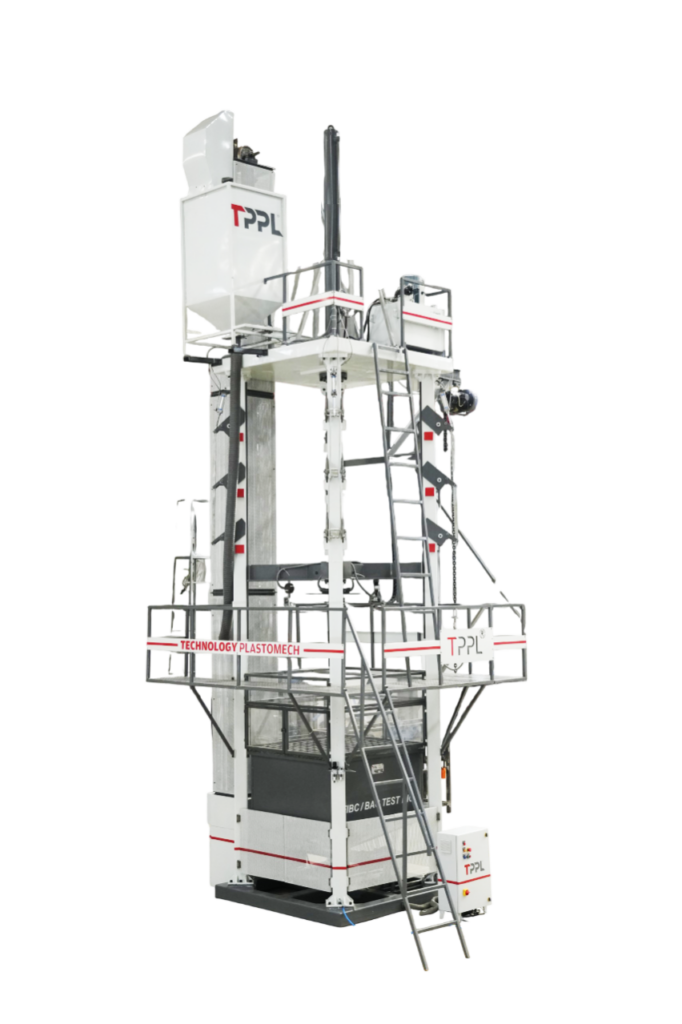

Bag Testing Rig – JBTR

Introduction

The JBTR Bag Testing Rig is designed to test the strength and durability of bags under controlled conditions. It ensures quality compliance and reliability for industrial packaging products.

Specifications

  • Testing Type: Load and strength testing
  • Suitable for FIBC and woven bags
  • Adjustable testing parameters
  • Digital control system
  • Heavy-duty structure

Benefits

  • Accurate testing of bag strength
  • Ensures quality and safety standards
  • Reliable and consistent results
  • Suitable for various bag types

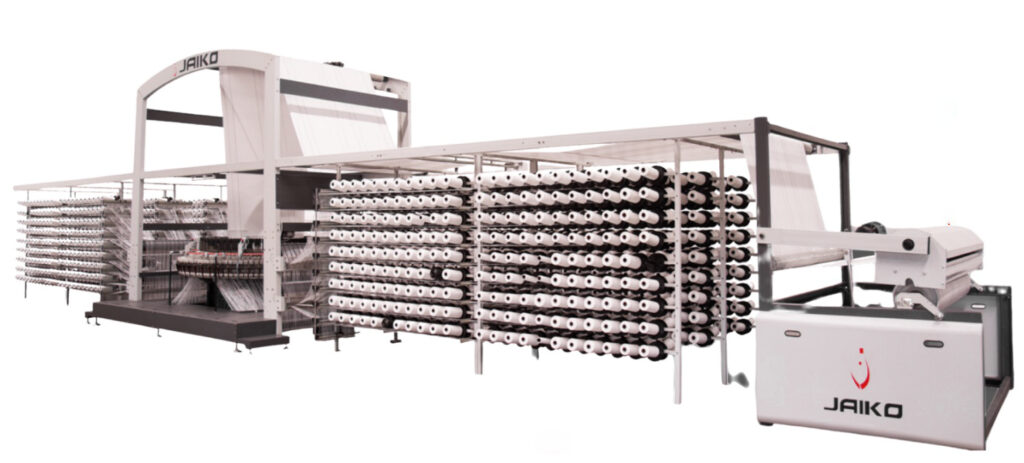

8 Shuttle Circular Loom

Vaga HF 812

Introduction

A magazine winder is an inverted winder design where the surface roll is positioned above the winding shaft. This configuration applies optimal pressure on the winding roll, ensuring precise tension control and superior winding quality, making it ideal for heavy denier fabrics and FIBC (Flexible Intermediate Bulk Container) applications.
Infeed System a motor with a suitable gearbox reduction assembly which provides the smooth flow with appropriate tension of warp tape through load cell tension control system.

Specification

MODELVega 812 LF
Working Width - Double Flat150 to 200 cm
No. of Shuttles/Loom8
Weft Insertion Rate (max)650 ppm*
Warp/Weft Core Internal Diameter35 mm**
Warp/Weft Core Length218 mm**
Warp Bobbin Diameter (max)130 mm**
Weft Bobbin Diameter (max)115 mm
No. of Tapes (LF/HF)1568
Winding Roll Diameter1200 mm
Dimension (L/W/H) (meter) LF13.33 / 3.74 / 4.66
Dimension (L/W/H) (meter) HF15.59 / 3.74 / 4.66

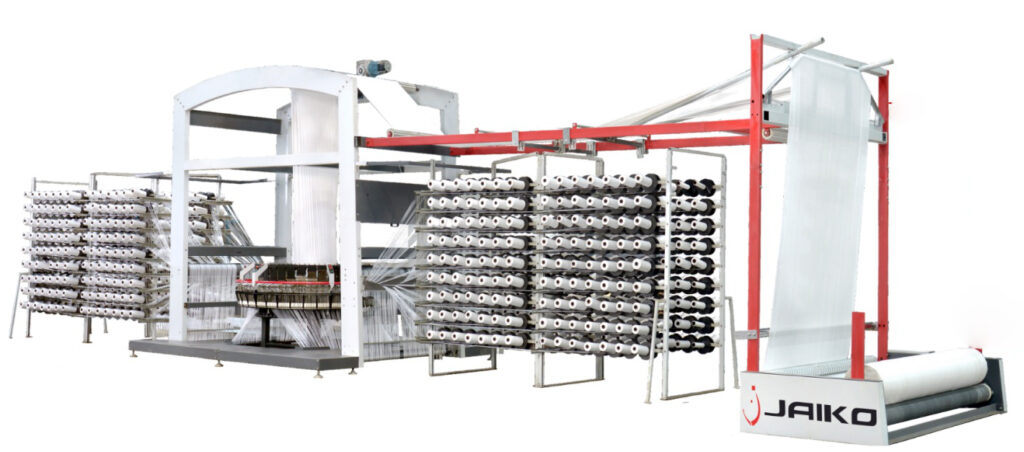

6 Shuttle Circular Loom

Vaga HF 608/609

Introduction

The HF version is designed for heavier fabrics, perfect for jumbo bags (FIBCS), tarpaulins and geotextile applications, ensuring durability and strength for demanding industrial needs.

Specification

MODELVEGA 608 HFVEGA 609 HF
Working Width - Double Flat80 to 130 cm85 to 140 cm
No. of Shuttles/Loom66
Weft Insertion Rate860 ppm*680 ppm*
Warp/Weft Core Internal Diameter35 mm**35 mm**
Warp/Weft Core Length218 mm**218 mm**
Warp Bobbin Diameter (max.)130 mm**130 mm**
Weft Bobbin Diameter (max.)115 mm115 mm
No. of Tapes10081296
Winding Roll Diameter1200 mm1200 mm
Dimension (L/W/H) (meter) HF13.57 / 3.11 / 3.8412.57 / 3.40 / 4.18
